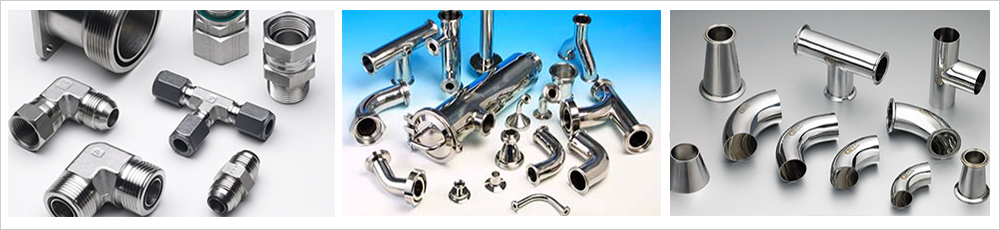

Stainless Steel Tube Fittings -
General Information: Tube fittings are fastidiously designed and made with continuous analysis and development backing to terribly tight tolerances below rigid internal control procedures approved to ISO 9001-2008 quality management systems to supply zero leak, force free lock in instrumentation and method tubing.
Tube fittings ensures most safety and responsibility because of Tests distributed like high, impulse, vibration, vacuum, temperature, pull out and burst pressure.
Tube fittings are available as standard stainless steel 316l, 309, 316 and 304, Brass, Monel, Hastelloy, Mild Steel etc.
PRESSURE RATING :
Tube fitting square measure rated for operating pressure beyond the tube suggested in tube knowledge table as shown below. However, tube shouldn’t be used higher than its most allowed operating pressure.
TUBING SELECTIONS :
Stainless steel 304, 309, 316 and 316l fully annealed seamless tubing according to standard ASTM a213 or ASTM a269 or equivalent, are suitable for use with tube fittings.
The tubing ought to be compatible with the method fluid, pressure and temperature.
For good performance of tube fittings, the tubing ought to be moderately spherical, free from nicks, scratches, the surface end ought to be smart and tube ends ar squarely cut and should be free from burrs.
The hardness of tubing as desired is 80Rb; the most allowed by ASTM is 90Rb.
