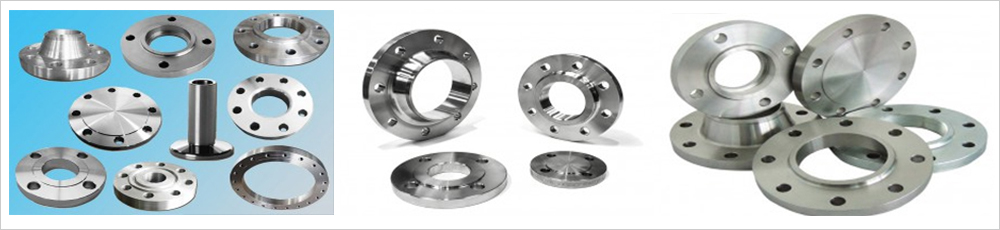

We are occupied with the manufacturing and supplying of an extensive variety of Stainless Steel Flanges, which is generally adulated among the clients we have. These offered flanges are broadly utilized as a part of the petroleum and common gas commercial ventures, electric businesses and substance commercial ventures. We offer steel flanges of diverse evaluations & standard ranges that keep national & universal principles. Premium quality stainless steel is utilized while creating these flanges.
|Stainless Steel||:||ASTM A 182, A 240|
|Grade||:||F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750|
|Carbon Steel||:||ASTM A 105, ASTM A 181|
|Alloy Steel||:||ASTM A 182, GR F1, F11, F22, F5, F9, F91|
|Nickel Alloys||:||Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276|
|Copper Alloys||:||Copper, Brass & Gunmetal|
|Size||:||1/8” NB TO 48” NB.|
|Class||:||150#, 300#,400 #,600#,900#, 1500# & 2500 #.|
|ANSI||:||ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48|
|DIN||:||DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673|
|B.S||:||BS4504 , BS4504, BS1560, BS10|
Stainless Steel Flange Types:
Slip-On Flanges :
Slip-on Flanges typically slips over the pipe. Slip-on Flanges are commonly made with an inside distance across of the pipe flange marginally bigger than the outside breadth of the pipe. This permits the slip-on flange to slip over the pipe. Slip-on pipe flanges are welded (normally both inside and outside) to give quality and avert spillage. Slip-on flanges can at times additionally have a manager/ring or center point, and can be made with a drag to suit either pipe or tube. Ring pipe flanges and center pipe flanges are both considered slip-on flanges on the grounds that they both slip over the pipe.
Threaded Flanges :
Bhandari is a particular manufacturer of brilliant ASME/ANSI/DIN standard threaded flanges in India. We offer quick conveyance programs for standard size of Carbon Steel Threaded Flanges and Stainless Steel Threaded Flanges. Threaded Flanges are broadly utilized as a part of low weight piping systems, as no welding is included while associating the flanges to pipes or other hardware. Notwithstanding, the flange may be welded around the joint after get together, yet it is not viewed as a palatable technique for expanding its applications. Threaded Flanges are otherwise called screwed flanges and are like slip-on flanges, however the drag is thread to empower collecting without welding. Threaded Pipe Flanges are typically utilized with pipes that have outer threads.
Weld Neck Flanges :
Weld neck flanges are effectively distinguished by their distending necks. Every flange neck is exhausted to suit the important divider thickness of the piping application on which it is to be utilized. Weld neck flanges have a tendency to be utilized as a part of higher weight applications. Every weld neck has a weld prep toward the end of the neck, with the goal that is can be welded specifically onto the piping. When the weld neck is in situ, the pipeline can be blanked off utilizing a visually impaired flange or the drag diminished utilizing a changed flange.
Blind Flanges :
Blind Flanges are utilized to clear off the closures of piping, valves and weight vessel openings. Blind Flanges can deal with high stretch from inward weight and jolt stacking following the greatest anxieties in the visually impaired flange are bowing burdens at the focal point. They are blasted on to neighbouring flanged pipeline get-together, where their strong focus goes about as a seal.
Socket Weld Flanges :
Socket Weld Flanges were produced for utilization on little size high weight piping. With an inner weld, Socket Weld Flanges are stronger and have more prominent weariness quality than twofold welding a slip-on spine. Smooth bore conditions can be effortlessly accomplished by pounding the inside weld. This spine is generally utilized as a part of substance process piping.
Lap Joint Flanges : Lap Joint Flanges are utilized with lap joint stubs. Lap Joint Flanges are ordinarily utilized as a part of carbon or low alloy steel piping frameworks that need to be often times disassembled for review and cleaning. They ought not be utilized at any focuses where serious twisting burdens happen.
